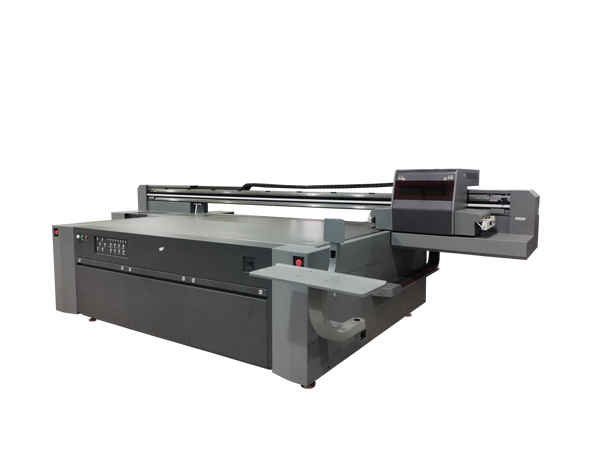

ACS8X4 FLATBED UV PRINTER

Printhead: Ricoh G5/G6

Number of nozzles: 2-8 optional

Printing mode: unidirectional and bidirectional

G6 print resolution: 2400dpi

G6 production efficiency: Standard mode: 32.8㎡/h

Production mode: 21.9㎡/h / High-precision mode: 16㎡/h

Platform size: 2500mmx1240mm

Printer dimension: 4250mmx2115mmx1400mm

Power: 5KW

Power requirements: AC 220V (+5%), 50Hz




RICOH GEN6 PRINT HEADS

RICOH GEN6 PRINT HEADS

RICOH GEN6 PRINT HEADS

 The new generation model of the Japanese company RICOH Ltd. Maximum frequency of 50kHz, allowing High Precision and High Speed

RIPRINT SOFTWARE

RICOH GEN6 PRINT HEADS

RICOH GEN6 PRINT HEADS

We use the independently developed domestic well-known brand RIPRINT, which has a professional color management system to ensure beatiful color output.

HIGH QUALITY

RICOH GEN6 PRINT HEADS

HIGH QUALITY

White, color and Varnish are produced simultaneously with advaced technology, resulting in more three- dimensional patterns, stronger adhesion and better wear resistance.

INDUSTRY EXCLUSIVE PATENTED CONICAL HOLE SUCTION PLATFORM

INDUSTRY EXCLUSIVE PATENTED CONICAL HOLE SUCTION PLATFORM

INDUSTRY EXCLUSIVE PATENTED CONICAL HOLE SUCTION PLATFORM

Provides super suction power and a more even fit with the material, ensuring easy loading and onloading of the materials.

ANTICOLLITION SYSTEM

INDUSTRY EXCLUSIVE PATENTED CONICAL HOLE SUCTION PLATFORM

INDUSTRY EXCLUSIVE PATENTED CONICAL HOLE SUCTION PLATFORM

It automatically stop the machine when touch an obstacle, preventing damage or jamming of the trolley and nozzles and also improving the safety of the operator.

BROKEN NOZZLE COMPESATION

INDUSTRY EXCLUSIVE PATENTED CONICAL HOLE SUCTION PLATFORM

BROKEN NOZZLE COMPESATION

Software can shutdown poorly performing nozzles and make timely data corrections without affecting machine productivity or overall printing quality, reducing head replacement costs.

ACS10x6.5 FLATBED UV PRINTER

Printhead: Ricoh G5/G6

Number of nozzles: 2-8 optional

Printing mode: unidirectional and bidirectional

G6 print resolution: 2400dpi

G6 production efficiency: Standard mode: 32.8㎡/h

Production mode: 21.9㎡/h / High-precision mode: 16㎡/h

Platform size: 3200mmx2000mm

Printer dimension: 5000mmx2800mmx1450mm

Power: 6.5KW

Power requirements: AC 220V (+5%), 50Hz
